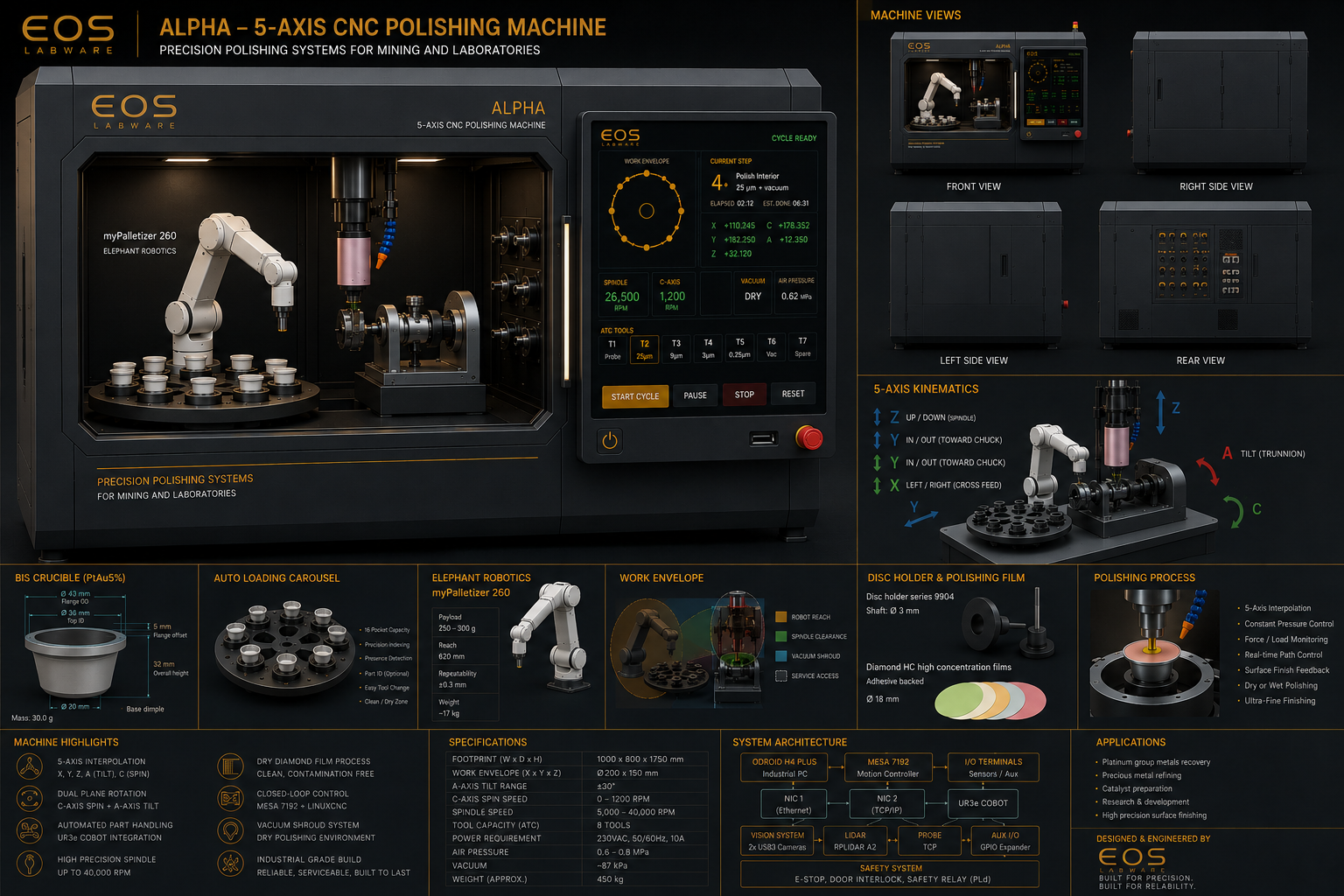

Concept Render — In Development
EOS Alpha 5-Axis CNC Polishing Machine
CONCEPT
5-Axis CNC Polishing Machine

EOS
Alpha

Precision polishing for crucibles, moulds, and laboratory labware. All-diamond dry film process from 25µm to 0.25µm. myPalletizer 260 cobot automation. Designed and built in Australia.

Register Interest View Specifications
5 Axes (X Y Z A C)
40k RPM Spindle
0.25µm Final Finish
12 Slot Carousel
8 ATC Tools
Scroll
Motion Architecture
True 5-Axis Interpolation
Z Axis
Up / Down
Spindle vertical travel. Plunges into bore, traverses along internal profile.
Y Axis
In / Out
Spindle toward or away from chuck centreline. Controls radial contact pressure.
X Axis
Left / Right
Cross feed and ATC traverse. Positions spindle over each tool station.
A Axis
Tilt
Trunnion tilt ±30°. Presents bore chamfers, corner radii, and tapered sidewalls to the tool.
C Axis
Rotation
Chuck spin 0–1,200 RPM. Rotates workpiece continuously during polishing for uniform finish.
Technical Data
Machine Specifications
Footprint (W × D × H) 1000 × 800 × 1750 mm
Work envelope (Ø × Z) Ø200 × 150 mm
A-axis tilt range ±30°
C-axis spin speed 0 – 1,200 RPM
Spindle Hiteco HC-2 3.3kW
Spindle speed 5,000 – 40,000 RPM
Tool interface HSK 25E
Tool capacity (ATC) 8 Tools
Toolholding HSK25E-ER8M-35 + ER8 collet
Disc holder Series 9904, Ø3mm shank
Carousel capacity 12 Slots
Load / unload robot myPalletizer 260 — Elephant Robotics
Motion controller LinuxCNC 2.9 + Mesa 7i92 EtherCAT
Industrial PC ODROID H4 Plus — Intel N97
Power requirement 230VAC, 50/60Hz, 10A
Air pressure 0.6 – 0.8 MPa
Vacuum −87 kPa
Safety E-Stop NC + Safety Relay (PLd)
Weight (approx.) 450 kg
Origin Designed & built in Australia
Polishing Sequence
All-Diamond Dry Process — 30 · 15 · 3 · 0.5µm
01
Coarse Grind — 30µm

LAM PLAN Diamond HC 30µm on Ø30mm disc holder. Vacuum ON for precious metal swarf capture. Removes macro irregularities and establishes bore geometry.

05D 30A0 2005 — Green
02
Fine Grind — 15µm

LAM PLAN Diamond HC 15µm on Ø30mm disc. Refines scratch pattern from T1. Each step is 2–5× finer — the standard metallographic stepping rule for consistent material removal.

05D 15A0 2005 — Brown
03
Pre-Polish — 3µm

LAM PLAN Diamond HC 3µm on Ø18mm disc. Smaller disc accesses corner radii and base zones. Achieves Ra ~20nm pre-polish surface.

05D 03A0 2005 — Pink
04
Final Polish — 0.25µm

LAM PLAN Diamond HC 0.5µm on Ø18mm disc. Surface finish target Ra <0.25µm. Ra <5nm on PtAu alloy. Dimple exclusion zone maintained throughout.

05D 95A0 2005 — Grey · Ra <0.25µm target
Applications
Built For
◈
Platinum Group Metal Recovery

Dry process enables direct swarf capture from PtAu, PtRh, and pure Pt crucibles. HEPA filter collection — no precious metal lost to wet waste.

⊕
XRF Fusion Crucibles

Claisse BiS and equivalent PtAu crucibles polished to mirror finish without touching the base dimple. Extends crucible service life significantly.

◇
Precious Metal Refining

Moulds and crucibles used in gold, silver, and platinum refining operations. Consistent bore finish reduces contamination between pours.

⊙
Catalyst Preparation

Laboratory crucibles used in catalyst synthesis where internal surface condition affects reaction yield and product purity.

◉
Research & Development

University and industrial R&D labs requiring consistent, reproducible surface finish on small batch labware without manual polishing variability.

⊞
High Precision Surface Finishing

Any axis-symmetric bore requiring Ra <10nm finish in a lights-out automated environment. Custom recipes per geometry and material.

Development Timeline

The EOS Alpha is in detailed engineering and prototype build phase. We are taking expressions of interest for early delivery units. Contact us to discuss your specific application.

Q1 2026
Complete
Concept Design & Architecture
Machine architecture, 5-axis kinematics, ATC design, all-diamond dry process sequence, LinuxCNC HAL, electrical architecture, tooling selection.
Q2 2026
In Progress
Detailed Engineering & SolidWorks Assembly
Full mechanical CAD, spindle column and Z-axis design, chuck trunnion assembly, carousel pockets for Claisse BiS, electrical cabinet build, HMI software.
Q3 2026
Upcoming
Alpha Prototype Build
First physical machine assembled and commissioned. LinuxCNC axis tuning, myPalletizer integration, process validation on PtAu crucibles.
Q4 2026
Upcoming
Customer Trials & Process Validation
Machine demonstrated with customer crucibles. Ra measurements, cycle time benchmarking, lights-out run validation, precious metal recovery quantified.
2027
Planned
Production Units — First Deliveries
First production EOS Alpha units delivered. Full support, training, and LAM PLAN consumables supply established in Australia.
Get in Touch

Interested in the EOS Alpha?

Register your interest now to be considered for early delivery. We're working with a small number of initial customers to validate the process on their specific crucible geometry and material.
